Pre Box S2 Digital - a revolution in performance in a unique component

The ultimate versatile, high-end preamplifier, DAC and headphone amplifier in one compact all-metal chassis. The Pre Box S2 Digital is simply a very flexible device.

A Pro-ject device in this size, for the first time, uses a dual mono configuration with top-of-the-line ESS Sabre DACs!This DAC is capable of high resolution audio up to 32bit/768kHz PCM and DSD512. The Pre Bpx S2 Digital is also the first device to support MQA hardware decoding.

MQA encoding can be applied to any uncompressed or lossless compressed format, such as the widely used FLAC, WAV or ALAC formats. However, the resulting files remain backwards compatible with current players. MQA is not just about encoding, it is about the whole process and signal processing from recording in the studio, to listening to the recording.

The development team was able to compress the jitter rate below 100 femtoseconds (^10-15) for the Pro Box S2 Digital preamplifier. There are also 7 digital filters to choose from. for user adjustments.

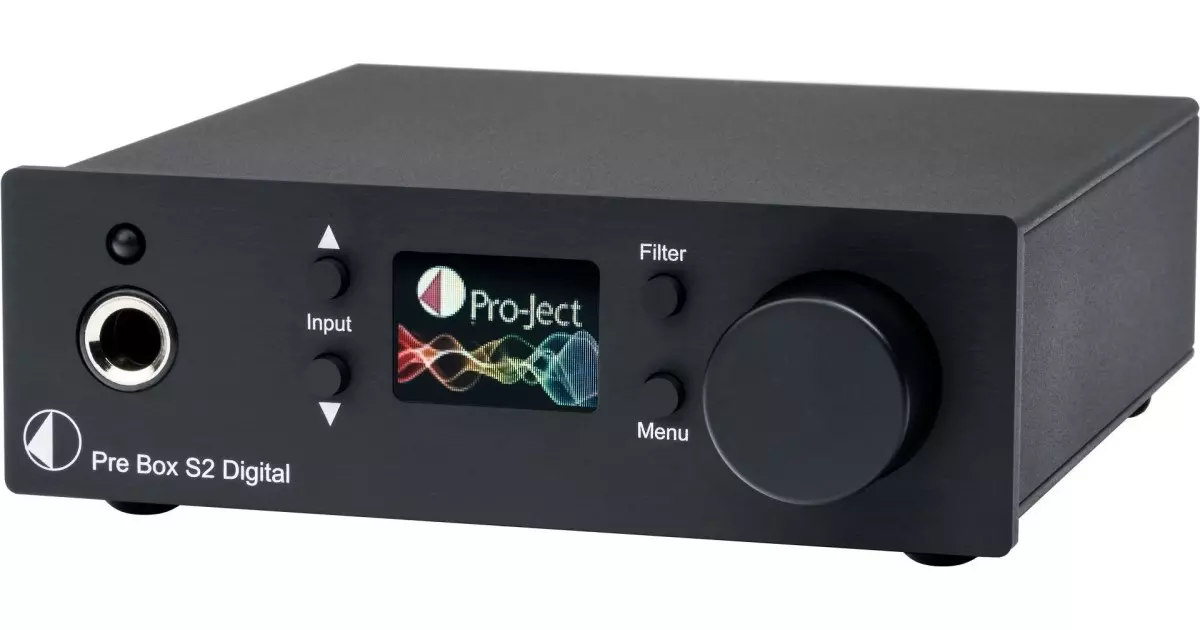

Despite its compact size, the device has a clear colour display and can be easily operated with the remote control.

FEATURES

• 3 digital inputs: 1 x coaxial (S/PDIF), 1 x optical (TOSlink®), 1 x USB B

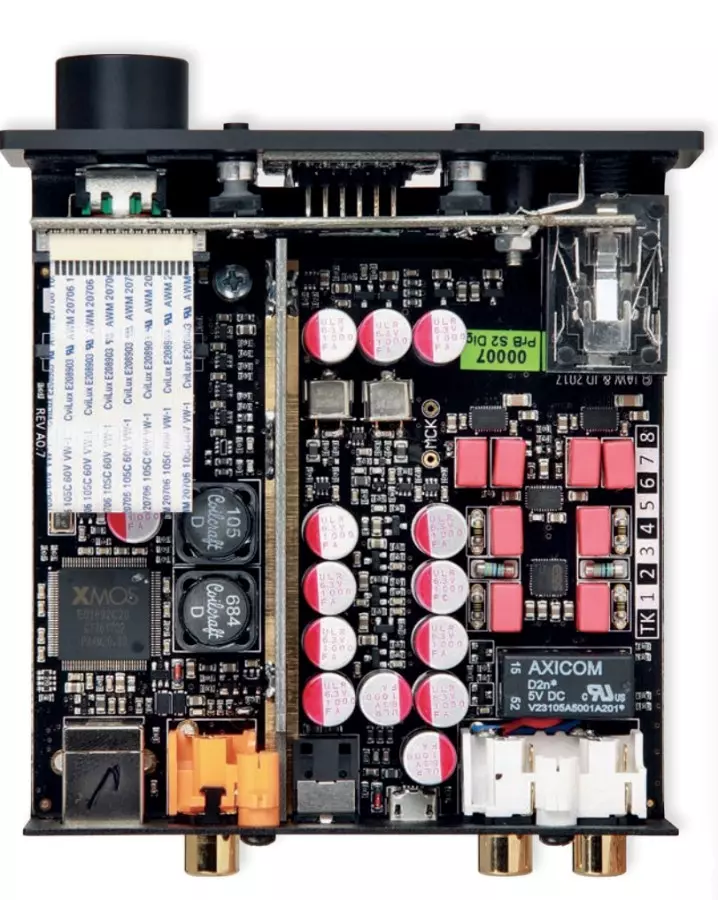

• DAC: 2 x ESS9038Q2M 32-bit PCM 768 kHz / DSD512
• Headphone amplifier chip: ESS9602
• Sampling frequency: 32 / 44.1 / 48 / 88.2 / 96 / 176.2 / 192 / 352.8 / 384/768 kHz
• DSD support: DSD64, DSD128, DSD256 and DSD512
• MQA support: full hardware MQA
• Filter settings: 7 different selectable settings

EVALUATION

Pro-Ject Pre Box S2 digital won the EISA 2017-2018 award

"Pro-Ject's Navy DAC is one of the most exciting DACs in this price range.The workmanship is incredibly good, the operation is intuitive and it is also an extremely powerful headphone amplifier with a large jack connector. Pro-Ject knows how to make its customers happy."

STEREO 07.2017 - Performance to price ratio rating "exzellent" (4 out of 5 stars)

"The Pre-Box S2 Digital, sets the benchmark for micro devices very high. High-end technology and high-quality components complemented by support for the highest HiRes formats and of course great sound. "HIFI 10. 2017

https://www.youtube.com/watch?v=N5Sko3SFxn8

https://www.headfonia.com/review-pro-ject-audio-pre-box-s2/ (ENG)

https://www.youtube.com/watch?v=RS-mtju4XC4

https://www.youtube.com/watch?v=oeVmjJClr3w

TESTS AND REVIEWS

• EISA DAC - Headphone Amplifier 2017-2018
• Profile review in Stereo & Video 7_2017
• Reviews_Hi-fi News
• Reviews_Stereo
• Review "Headfonics" 03. 2018
• Review of "Headfonics" 01. 2018
• Datasheet (EN)
• Test - AUDIO (EN)
• Test Pre Box S2 Digital + Stream Box S2 - STEREOPLAY
• German Design Award 2019 - Winner
• Review StereoPhile 9/2021 (EN)

Procedure Update and Setup Pro-Ject Pre Box S2 digital

https://www.youtube.com/watch?v=myJxhXHI1iY

TECHNICAL SPECIFICATIONS

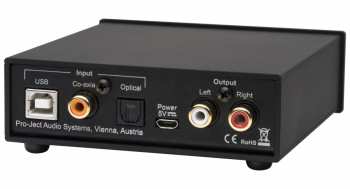

• 3 digital inputs:1 x coaxial (S/PDIF), 1 x optical (TOSlink®), 1 x USB-B

• DAC:2 x ESS9038Q2M 32-bit PCM 768 kHz / DSD512

• Headphone amplifier chipESS9602

• Sampling frequency:32 / 44.1 / 48 / 88.2 / 96 / 176.2 / 192 / 352.8 / 384 / 768 kHz

• DSD support:DSD64, DSD128, DSD256 and DSD512

• MQA support:Full hardware MQA

• Filter settings:7 different selectable settings

• Frequency response:20 Hz - 20 kHz

• Analog Output:6.3 mm headphone output (front), 1 x regulated RCA (rear)

• Output voltage:2,05 V

• Headphone output power: 68 mW (32 Ω)

• THD:0,0003 %

• Dynamic range:124 dBA

• Power supply:5 V, micro USB

• RoDimensions W x H x D:103 x 36 x 103 mm

• Weight:600 g without power supply
