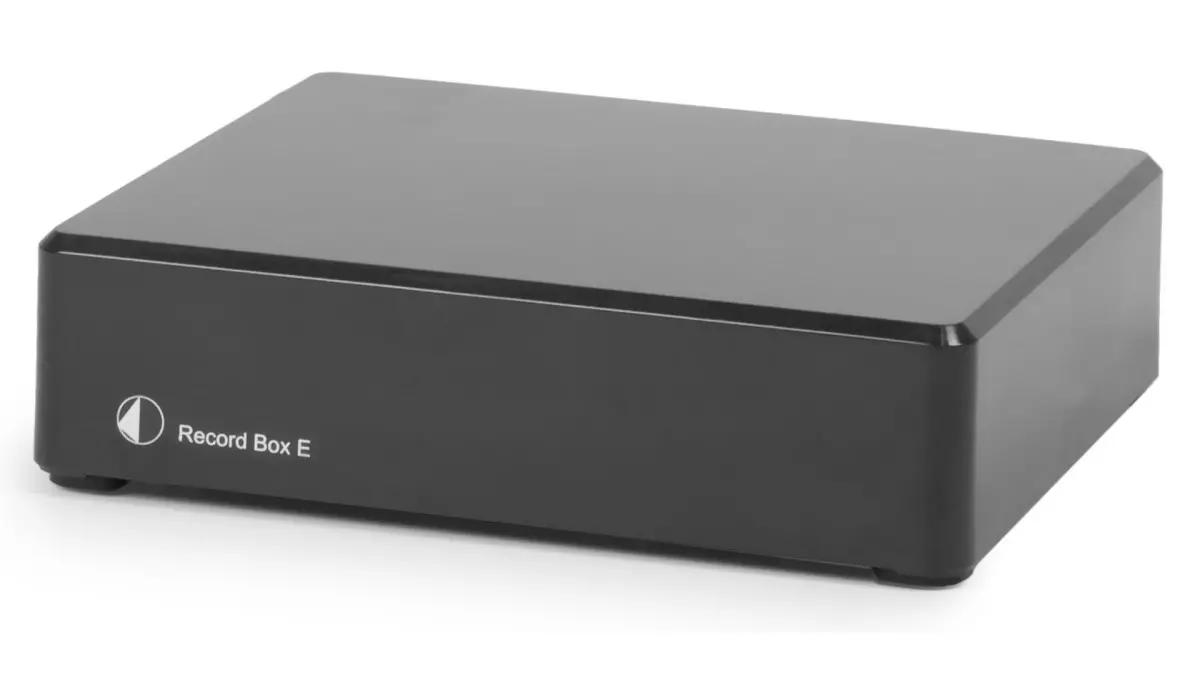

Basic phono preamplifier for MM/MC cartridges with DAC and USB output
TheRecord Box E allows you to connect a turntable to an amplifier and also offers recording functions.
The Record Box E is a high quality phono preamplifier that offers the ability to convert your precious vinyl records via PC to digital music data.
TheRecord Box E is suitable for both MM and MC type cartridges and provides an audiophile music experience at a basic price.
Theintegrated A/D converter works with Windows and MAC operating systems and connects via USB to your computer.You can easily digitize your valuable vinyl collection, especially for use in portable music players.The pre-amplified analog signal is sent via the line output to the connected amplifier. Advanced circuitry and SMD design keep noise and distortion at surprisingly low levels.

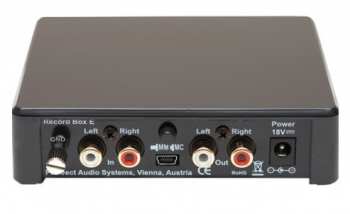

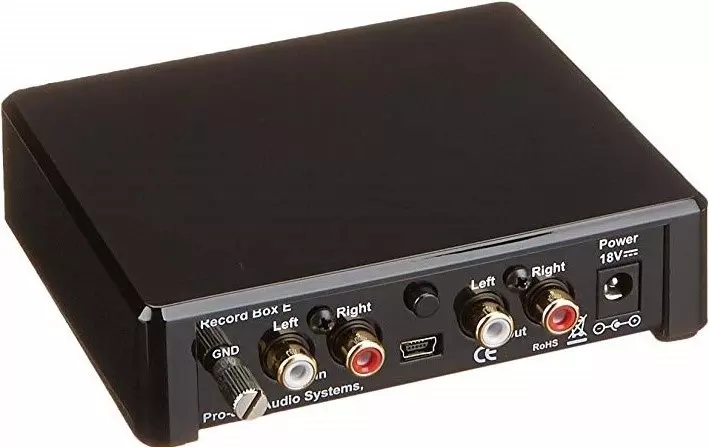

Integrated internal shielding and an external DC power supply eliminate the risk of external interference.Thanks to its compact housing, the Record Box E can be placed close to the turntable. Input and output sockets are gold-plated to maintain quality.
FEATURES
- Gain and RIAA equalization for both MM and MC cartridges
- Dr. Sykora inspired design
- In combination with suitable software, allows analogue recordings to be digitised via USB
- Automatic recognition - no additional drivers required
- Runs on Windows®, MAC OS® and Linux operating systems
- SMD circuitry with low noise components
- Internal metal shielding
- Gold-plated RCA connectors
TECHNICAL SPECIFICATIONS
- - Input impedance: MC: 100 Ω / 120 pF; MM: 47 kΩ / 120 pF
- - MM/MC signal-to-noise ratio:94 dB / 75 dB
- - MM/MC gain:40 dB / 60 dB
- - THD (Total Harmonic Distortion) MM / MC: < 0.01% / < 0.05%
- - RIAA accuracy: 20 Hz - 20 kHz / max. 0.5 dB
- - DC power supply: 18 V / 500 mA DC
- -USBoutput (USB 1.1), for Windows, MacOS, Linux
- - A/D converter: Burr Brown PCM2904 16-Bit Delta Sigma
- - Sampling frequencies: 32, 44.1 and 48 kHz
- - Dimensions: 120 x 32 x 100 (115) mm
- - Weight: 250 g (without power supply)
- - Gold-plated RCA connectors
Properties
Colour
Black
Frequency range
20 - 20 000 Hz
Signal to noise ratio
94 dB, 75 dB
Type
MM, MC
Profit
40 dB, 60 dB
Dimensions
Depth
115 mm
Height
32 mm
Width
120 mm
Inputs and outputs
Access
Cinch Females
Retrieved from
USB
Connector modification
24K gold plating
