Ortofon 2m 78

Ortofon

Cartridges

More ID: 282655 EAN: 5705796080063

Best price guarantee

If you find this product cheaper elsewhere, we will match the price!
more information

Condition

New

Availability

We have changed the nomenclature of the stack. Items with delivery within a week are now 'In stock with supplier'. Items with delivery within two weeks are now 'In stock with publisher'.

At supplier

Expected on

Price

147,99 €

Price includes VAT 21 %

Availability

We have changed the nomenclature of the stack. Items with delivery within a week are now 'In stock with supplier'. Items with delivery within two weeks are now 'In stock with publisher'.

At supplier

Expected on

- Each Ortofon HIFI product from the official distribution for the Czech Republic is provided with a certification card, which is an integral part of the 2-year or 3-year warranty and a sticker.

- Use the central database of serial numbers and register your Ortofon product immediately after purchase.the appropriate serial number, which is indicated on the enclosed card or on the label of the box.

- Registration applies only to the HIFI segment

- Warranty period:

- Ortofon HIFi - 2 years

- Extended 3-year warranty based on registration of the product purchased from an authorized Ortofon dealer - Made in Denmark.

- REGISTRATION OF THE SERIAL NUMBER OF THE PRODUCT PURCHASED:

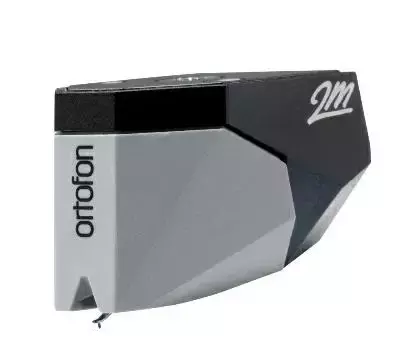

The 2M 78 is an MM cartridge with a spherical 65 µm tip that is ideal for playing 78rpm records that require a larger tip profile for proper playback.

Output voltage at 1000 Hz, 5cm/sec.	4 mV, lateral mono
Frequency range at - 3 dB	20-22,000 Hz
Tracking capability at 315Hz	70 um
Compliance	18 um/mN
Tip	Spherical
Tip radius	R 65 µm
Clamping force range	1,6-2,0 g (18-25 mN)
Recommended contact pressure	1.8 g (20 mN)
Tracking angle	20 °
Internal impedance, DC resistance	700 Ohm
Internal inductance	300mH
Recommended load resistance	47 kOhm
Recommended load capacitance	150-300 pF
Weight of the transmission line	7,2 g
